Pipe Lining

We revive aging pipelines. Long-distance and large-diameter pipelines are targeted for this method.

We regenerate corroded pipelines by cleaning, washing, and lining them, and enable them to reuse for more years.

Features

  • Aging existing pipelines can be regenerated on site. (Pipeline lifetime improves greatly.)
  • Lining agent can be applied with uniform film thickness.
  • Long-distance pipelines can be also applied to this technique.
  • Buried pipelines or elevated pipelines can be also regenerated at low cost.
  • We can handle them in a wide range of diameters.
  • This lining agent withstands penetration of corrosives such as sulfides and chlorides for extended periods of time.
  • We handle all type of pipelines, such as that of water, oil, gas, LNG, and various chemicals. (Lining by other resin materials (tar epoxy, etc.) is also available depending on each purpose.)
Benefits

  • We regenerate corroded pipelines by cleaning, washing, and lining them, and enable them to reuse for more years.
Major Application

  • We can handle various type of pipelines such as oil, gas, fire extinguishing pipelines, sewage pipelines, etc.

  • Water supply pipelines are also targeted for this technique.
Specifications

  • Vinyl-ester resin lining with glass flakes using pig
Processes and Methods

  • Lining with pig

Method of lining

Our main lining method is using pig. By extruding pigs with air, nitrogen, or other media, we remove residual material in the pipeline, clean, prepare the surface, apply a base coat, and finish the lining. We use a wide variety of pigs depending on the application.

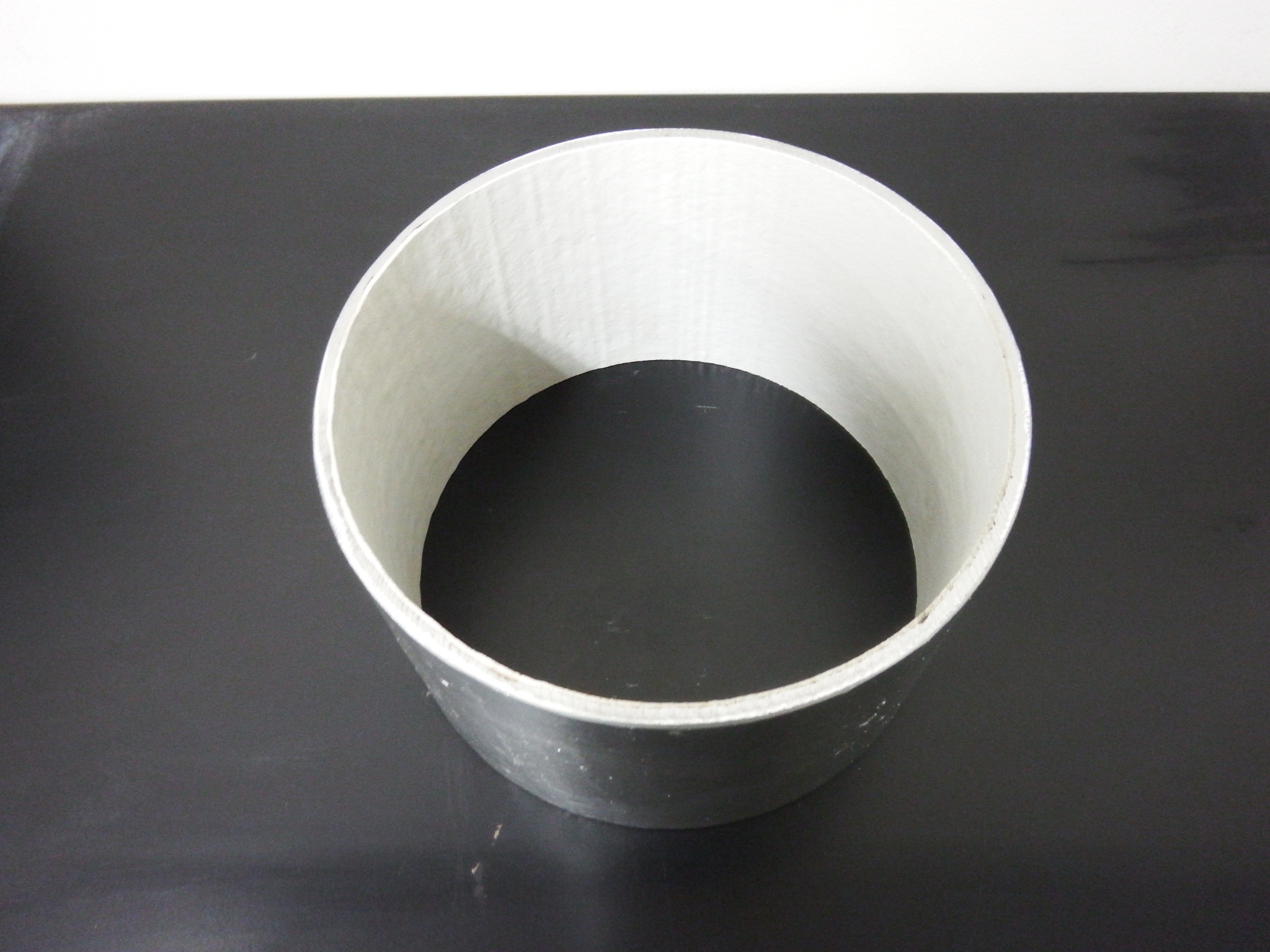

Lining cross-sectional view

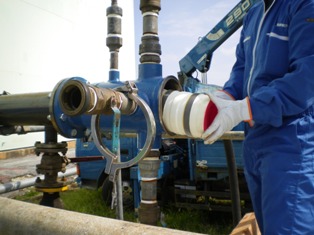

Pig Insertion

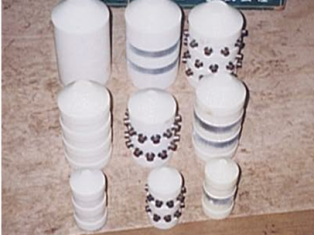

Various cleaning pigs

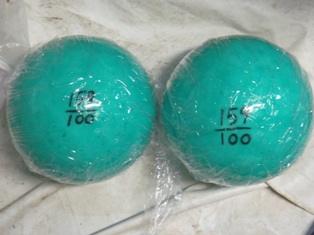

Lining Pig

Results

We have many experiences of pipeline maintenance for oil companies, chemical manufacturers, electric power companies, and many other companies in various industries.

With over 30 years of experience in the past, we possess a variety of know-how.

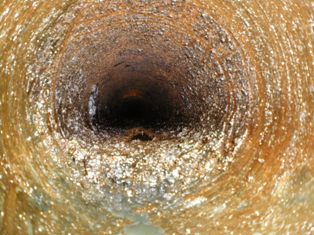

Pipeline inner surface (before cleaning)

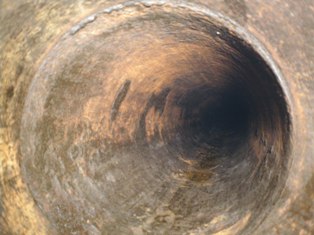

Pipeline inner surface (after cleaning and surface preparation)

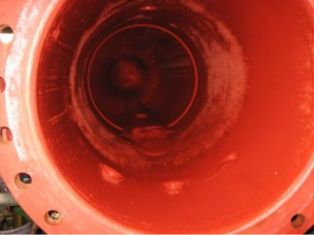

Primer application

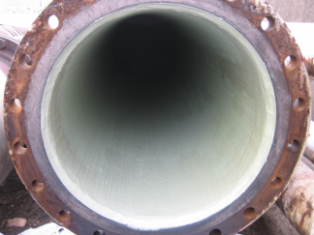

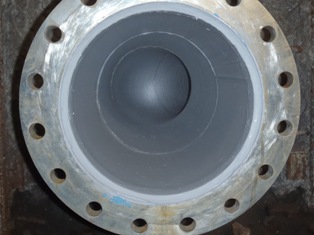

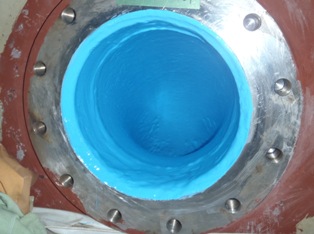

Lining completed

Application Scope

We have rich experiences in a wide variety of pipeline maintenance, including water, oil, gas, fire extinguishing, sewage, and water supply pipelines, treating with any type of fluid in the pipeline.

We can also handle pipelines with diameters from small to large (2B to 30B). Pipelines with 30B and larger diameters can also be accommodated upon consultation.
